Configuring the Integration in ServiceNow

Before provisioning the integration in ServiceNow, customers must get API user ID/password from TrustArc. Customer’s TrustArc Sales can help in procuring these credentials.

• Setting up API user in ServiceNow for TrustArc to access tables
• Setting up Inbound OAuth Authentication
• Setting up Outbound OAuth Authentication in ServiceNow (from ServiceNow to TrustArc)
• Setting up Outbound REST message in ServiceNow
• Setting up business rules in ServiceNow

Setting up API user in ServiceNow for TrustArc to access tables

NOTE: You must have admin role privileges to access ServiceNow.

1. Log in to your ServiceNow account.
2. From the left side of the homepage, navigate to User Administration (1) > Users (2), and then click New (3).




3. Set up the following for the user, and then click Submit.



   Field	Value
   User ID	Provide an appropriate user ID
   Password	Provide password
   First name	First name of the user
   Last name	Last name of the user
   Title	Provide an appropriate title
   Active	Select this checkbox
   Web Service Access Only	Select this checkbox
   Email	Email ID of the user
   Roles	Select “Admin,” “Personalize Dictionary,” “itil”

Setting up Inbound OAuth Authentication

NOTE: This requires admin role privileges in ServiceNow.

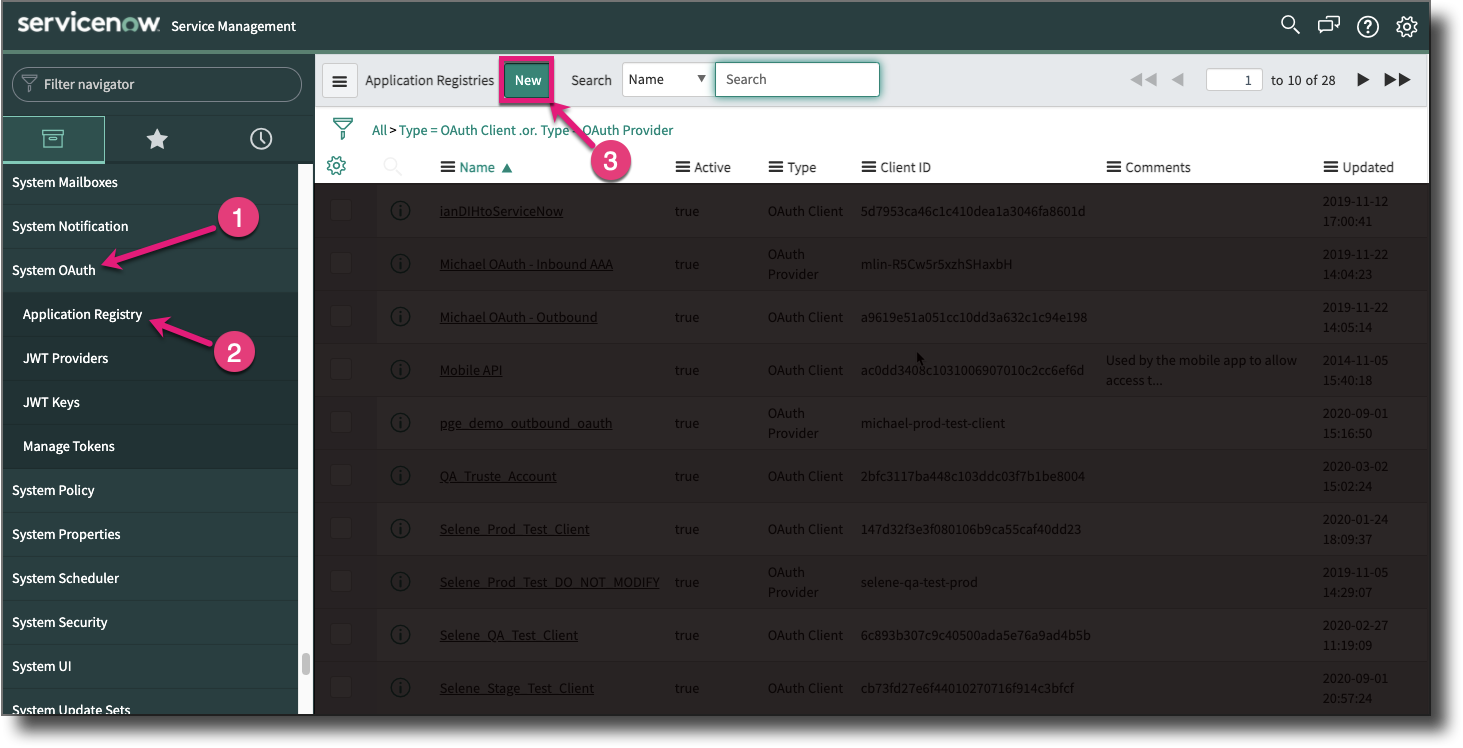

1. From the homepage, navigate to System OAuth (1) > Application Registry (2), and then click New (3).

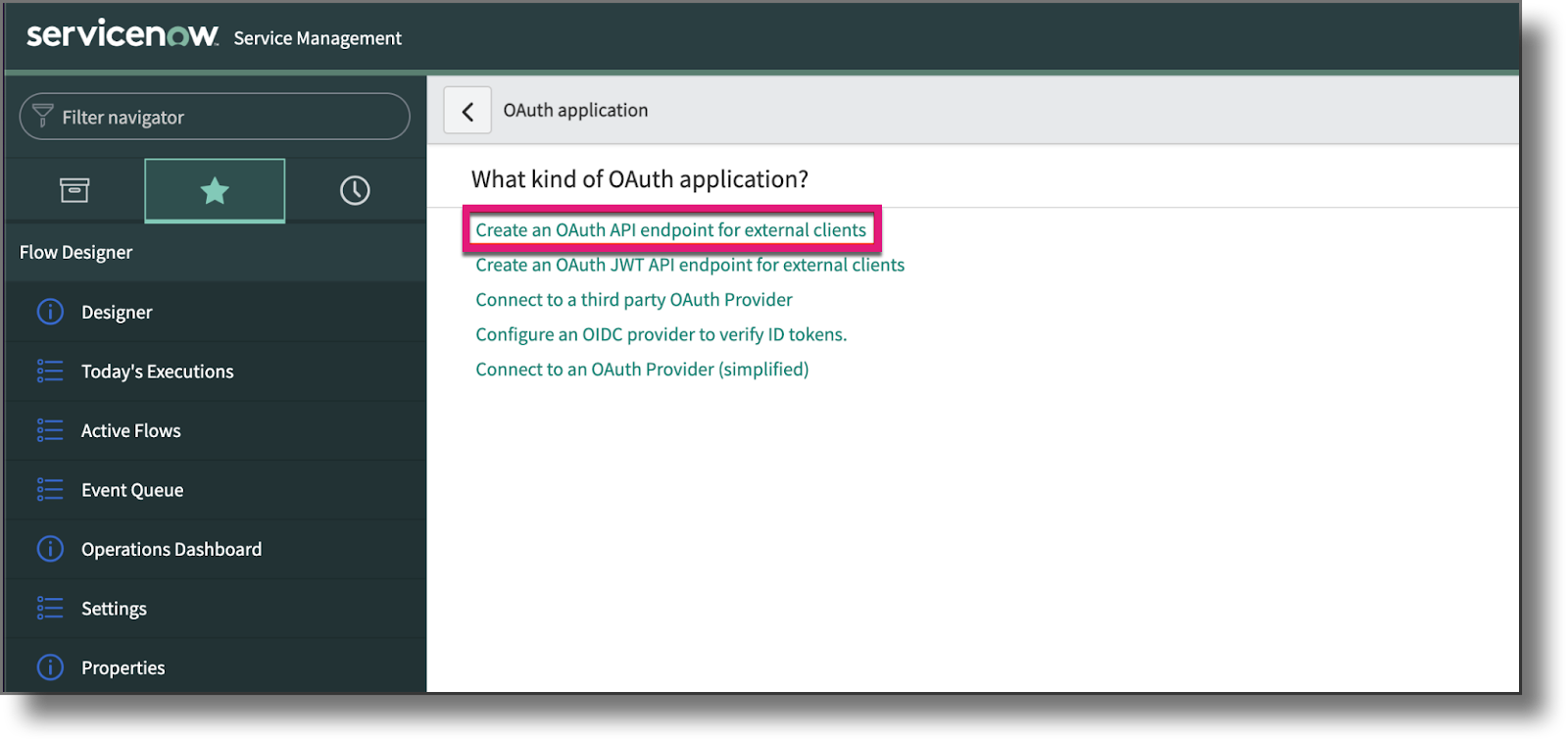

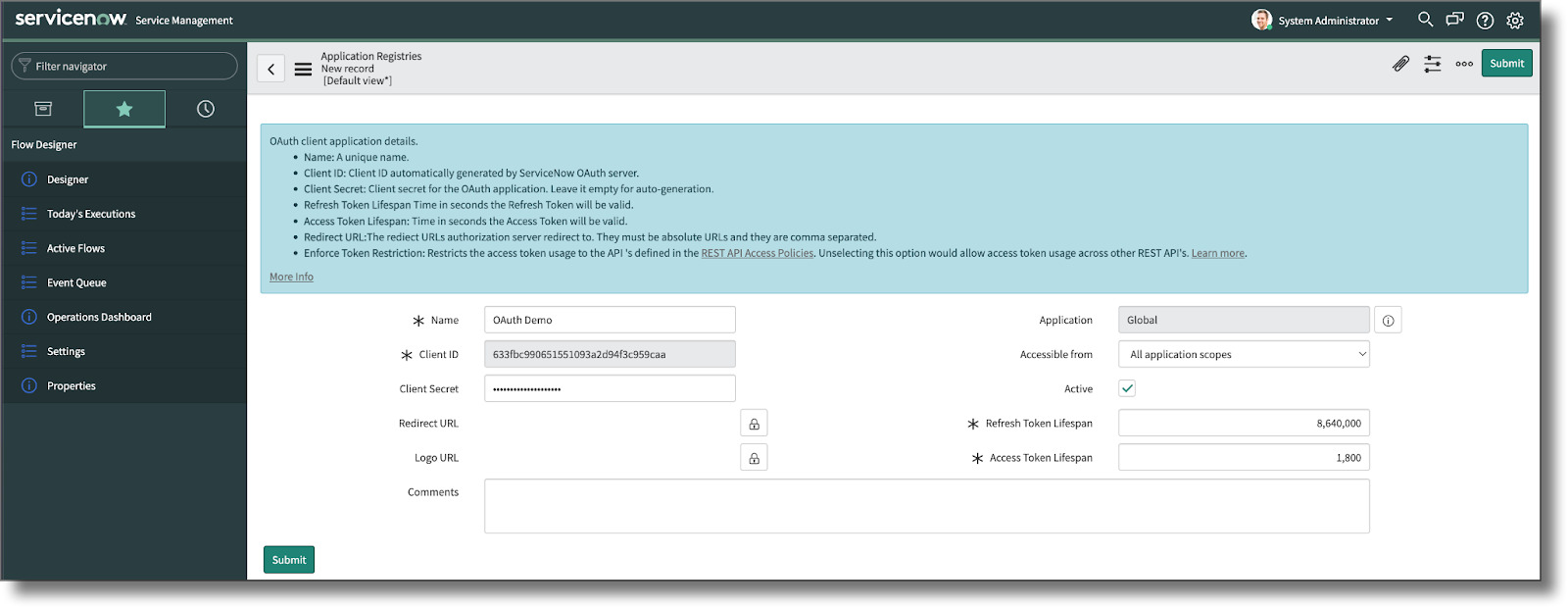

2. On the Interceptor page, click Create an OAuth API endpoint for external clients, and then fill in the form as follows:



   Field	Value
   Name	A distinguishable name for this OAuth client. Example : TrustArc API Account
   Client ID	System default ID or you can create your own one.
   Client Secret	A client secret for TrustArc to authenticate against your ServiceNow.
   Application	Global
   Accessible from	Select All Application Scopes.
   Refresh Lifespan Token	8,640,000
   Token Lifespan	1,800

3. Click Submit.

Setting up Outbound OAuth Authentication in ServiceNow (from ServiceNow to TrustArc)

1. From the homepage, navigate to System OAuth (1) > Application Registry (2), and then click New (3).

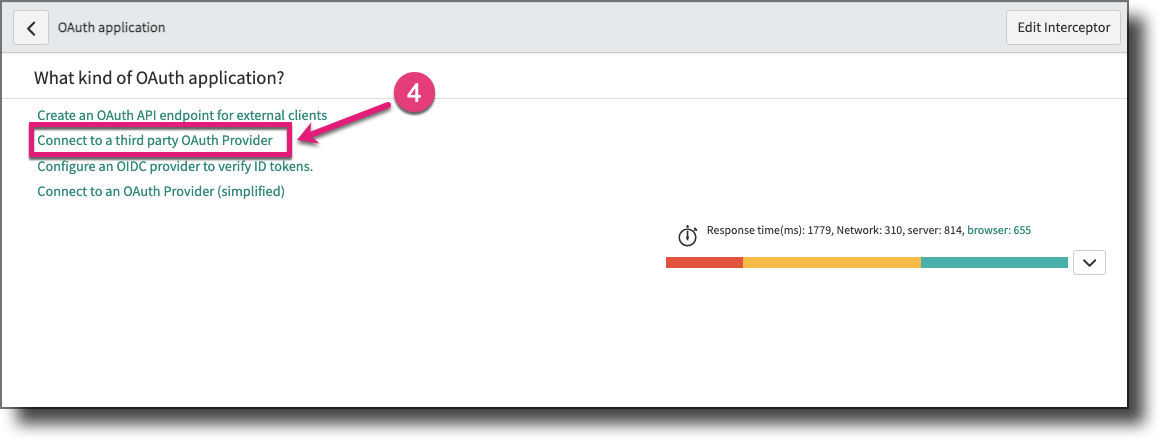

2. Click Connect to a third-party OAuth provider (4), and then fill in the form as follows:



   Field	Value
   Name	A unique name
   Client ID	ClientID provided by TrustArc
   Client Secret	Client Secret provided by TrustArc
   Default Grant Type	Select “Client credentials”
   Refresh Token Lifespan	8,640,000
   Accessible from	Select “All Application Scopes”
   Active	Select the checkbox
   Token URL	https://api.trustarc.com/api/auth/oauth/token

3. Click Submit.

Setting up Outbound REST message in ServiceNow

1. From the homepage, navigate to System Web Services (1) > Outbound (2) > REST Message (3), and then click New (4).




2. Fill the fields with the following values, and then click Submit.



   Field	Value
   Name	Provide a distinguishable name
   Application	Global
   Accessible from	This application scope only
   Endpoint	https://api.trustarc.com/api/integration/event
   Authentication type	OAuth 2.0
   OAuth Profile	Name of the OAuth Profile created

3. Open the RESET message that you have created, and to the right of HTTP Methods, click New (5).

4. Provide the values to the following fields:

   Field	Value
   Name	Provide a distinguishable name
   HTTP method	POST
   Endpoint	https://api.trustarc.com/api/integration/event
   Authentication tab > Authentication Type	Inherit from parent
   HTTP Request tab > HTTP Headers > Accept	application/json
   HTTP Request tab > HTTP Headers > Content-Type	application/json

Setting up business rules in ServiceNow

1. From the homepage, navigate to Metrics (1) > Business Rules (2), and then click New (3).




2. Provide the fields with the following values:

   Field	Value
   Name	Provide a distinguishable name
   Table	Select a table from which you would like to sync the data to the Data Mapping & Risk Manager
   Application	Global
   Active	Select the checkbox
   Advanced	Select the checkbox

3. In the Advanced tab (4), copy the JavaScript below and paste it to the Script field in the tab:



JavaScript for Business Rules

(function executeRule(current, previous /*null when async*/) {
try {
     var d = new GlideDateTime();
     var ms = d.getNumericValue();

     // Debug purpose
     gs.print('sys entity  Id=' + current.getValue('sys_id'));
     gs.print('eventTraceId=' + gs.generateGUID());
     gs.print('entityName=' + current.number);
     gs.print('tableName=' + current.getTableName());
     gs.print('created=' + new Date(ms).toISOString());

     var r = new sn_ws.RESTMessageV2('<Outbound Message Name*>', '<HTTP Method Name*>');
     var requestBody = {
         entityId: current.getValue('sys_id'),
         eventTraceId : gs.generateGUID(),
         entityName : current.number.toString(),
         tableName : current.getTableName(),
         created : new Date(ms).toISOString()
     };
     r.setRequestBody(JSON.stringify(requestBody));
     var response = r.execute();
     var responseBody = response.getBody();
     var httpStatus = response.getStatusCode();

     // Debug purpose
     gs.info("Response Body = "+responseBody);
     gs.info("HTTP Status = "+httpStatus);
} catch (ex) {
     var message = ex.getMessage();
}
     })(current, previous);

NOTES:

• In JavaScript, the Outbound Message Name needs to be replaced with the outbound REST message name entered while setting up Outbound REST Message.
• In JavaScript, the HTTP Method Name needs to be replaced with the HTTP method name created while setting up Outbound REST Message.
